Sword® Dynamic White
  • IP67

Sword® Dynamic White Series, provides optimum illumination with excellent range of color temperatures in media facade lighting, bridges, stadiums, creative stage lighting and specialized lighting design. Desired animations can be achieved using LEDs at range of color temperatures between 2700K and 6500K. Sword® DW fixture provides a dynamic lighting solution with unlimited pixel options, advanced accessory alternatives and easy assembly structures. Sword® DW is used specifically in dynamic lighting applications that require a long and linear appearance, and thus offers great opportunities for special lighting designs as well.



• Sword® DW delivers the desired color tone due to adjustable white color options. Furthermore, the desired animation that is required for warm and cold color range, can be achieved using 2700K and 6500K LEDs.

• Sword® DW provides compatible communication with other fixtures using standard DMX512 and RDM protocols without requiring any other special communication protocol or production ID. They are remotely addressable in group via RDM protocol. This feature allows for easy pixel mapping and addressing after all installations have been completed.

• Sword® DW fixtures enable flexible application using very long starter and jumper cables, since they operate in a 48V DC voltage range

• The operating characteristics of the fixtures are able to be changed with the DMX Personality, therefore it is possible to change the number of pixels of the products as well. The number of pixels of the fixtures can be changed to be optimized for appearance and scenario variations. For example, each LED in the 25mm range can be 1 pixel, or 2 LEDs, 4 LEDs, 8 LEDs as 1 pixel.

 •Through RDM monitoring and software, it is possible to follow and determine: whether the fixtures are working properly, by displaying voltage input and output warnings, serial number, display of regional temperature values and DMX address. The user is informed by e-mail according to incoming data thus, automatic interventions are possible based on received data.

• Sword® DW fixtures work through Madrix® software and hardware in coordination. Pixel mapping can be made easily by selecting fixtures in the Madrix® library.

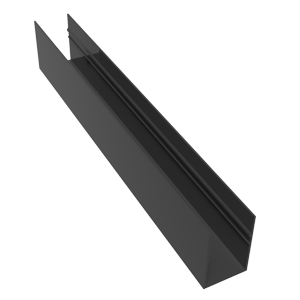

• Direct View, Flat Diffused, Radius Diffused, Round Diffused options are available. Diffuser profiles are resistant to impacts and UV, and never turn yellow during their lifetime due to the alloyed PMMA and PC structure.

• Sword® DW creates a continuous linear appearance. Due to the special side-cover design, fixtures are mounted side-by-side and no shadows are formed between them.

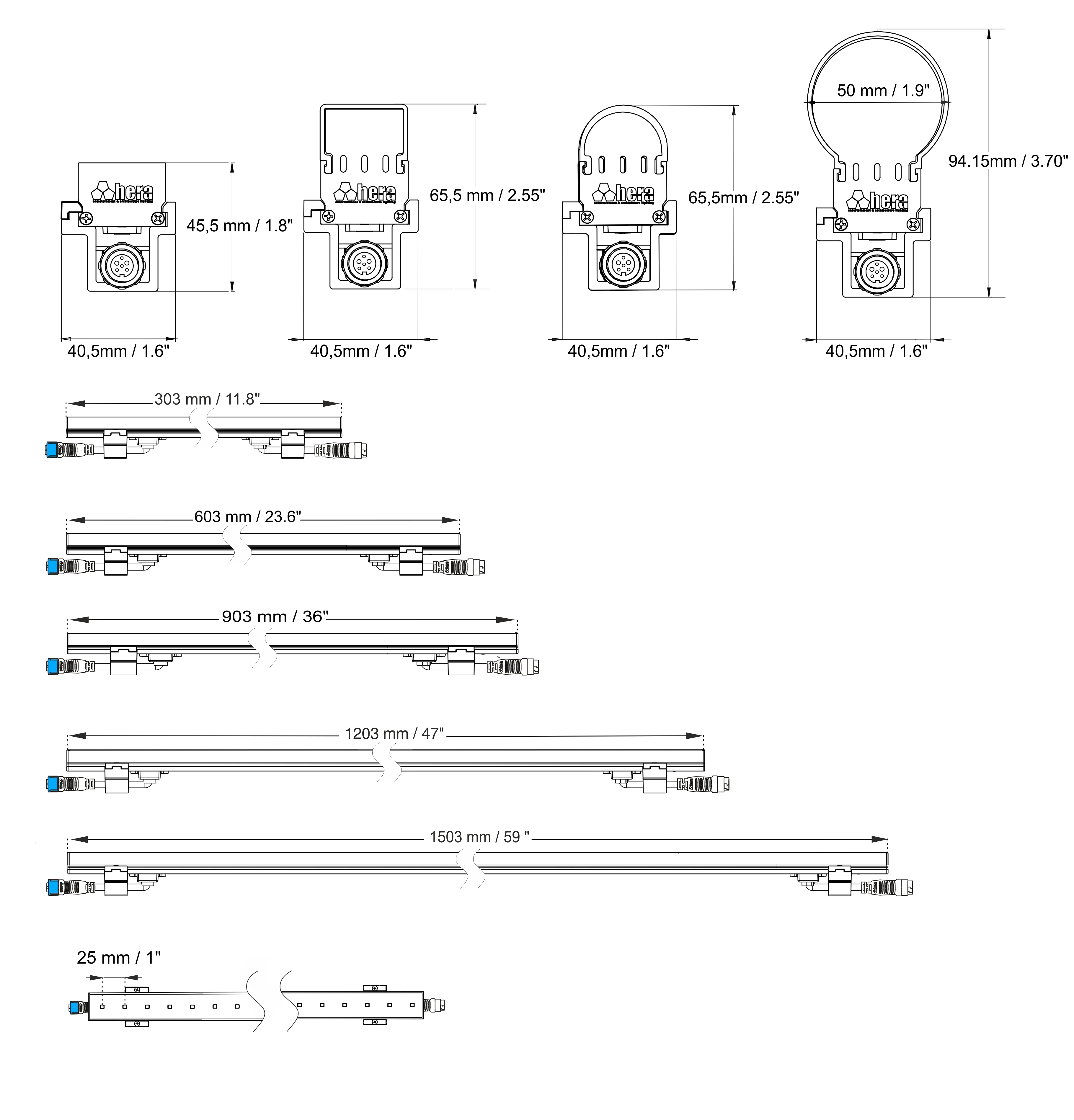

• Available for different form of applications in different lengths: 300mm, 600mm, 900mm, 1200mm, 1500mm. Sword® DW has extra flexible mounting feature for confined spaces, with mounting bracket that can move on the fixture.

• Sword® DW fixture is in IP67 protection class and it is designed to meet challenging requirements of exterior facade applications with its robust and durable structure. Sword® DW is resistant to impact, vibration and other harsh conditions, due to aluminum housing and special filler material.

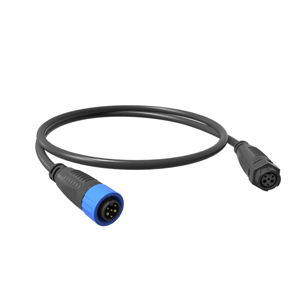

• Sword® DW provides power and data transmission via input and output connectors.   IP67 connectors are in push-lock structure. They can be easily rotated and assembled, and leave sufficient gaps between the fixtures. There is no need to use extra junction-box via input and output.

• The slim profile (30mm) ensures to integrate and camouflage the different types of facade coatings easily. Produced in RAL9005-black color as standard, and it is also available in different colors in RAL code upon request.

Read More

Ordering Information

P01058125 Sword® DW 300mm Direct View

P01059125 Sword® DW 600mm Direct View

P01060125 Sword® DW 900mm Direct View

P01061125 Sword® DW 1200mm Direct View

P01062125 Sword® DW 1500mm Direct View

P01066125 Sword® DW 300mm Radius Diffused

P01067125 Sword® DW 600mm Radius Diffused

P01068125 Sword® DW 900mm Radius Diffused

P01069125 Sword® DW 1200mm Radius Diffused

P01070125 Sword® DW 1500mm Radius Diffused



P01078125 Sword® DW 300mm Round Diffused

P01079125 Sword® DW 600mm Round Diffused

P01080125 Sword® DW 900mm Round Diffused

P01081125 Sword® DW 1200mm Round Diffused

P01082125 Sword® DW 1500mm Round Diffused



P01094125 Sword® DW 300mm Flat Diffused

P01095125 Sword® DW 600mm Flat Diffused

P01096125 Sword® DW 900mm Flat Diffused

P01097125 Sword® DW 1200mm Flat Diffused

P01098125 Sword® DW 1500mm Flat Diffused
