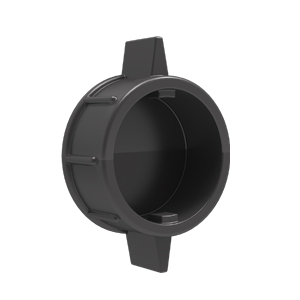

PD60 RGBW
  • IP67

PD60 RGBW Series ensures optimum illumination and excellent colour harmony with sturdy outdoor-rated structure, high brightness, wide color range, customization options especially in large-scale surfaces or high-rise structures where pixel pitch lengths are required with a considerable distance. Extraordinary effects can be created with large fixtures without the limitation of size, shape and distance limit. With RGB + smart white algorithms, the 3-channel system controls 4 colors per pixel. This feature provides white color in better quality thereby improves the display brightness and efficiency. Connectors are located on the rear in the PD60 RGBW version and on the side surfaces in the PD60S RGBW version. The dome version with opaque lid is used in many different designs. The fixture has 12LEDs and it can be seen from long distance. PD60 RGBW series is widely used in large-scale projects in terms of producing dot-pixel solutions with direct view, such as media facade lighting and specialized lighting applications.



• PD60 RGBW can be used in 4 channels through DMX Personality. The 3-channel system can control 4 colors per pixel through RGB + smart white algorithms. All customization options can be chosen remotely through DMX512 protocol.

• PD60 RGBW provides compatible communication with other fixtures using standard DMX512 and RDM protocols without requiring any other special communication protocol or production ID. They are remotely addressable in group via RDM protocol. This feature allows for easy pixel mapping and addressing after all installations have been completed.

• PD60 RGB fixtures enable flexible application using very long starter and jumper cables, since they operate in a 12-48V DC voltage range.

• Through RDM monitoring and software, it is possible to follow and determine whether the fixtures are working properly; by displaying voltage input and output warnings, serial number, display of regional temperature values and DMX address. The user is informed by e-mail according to incoming data thus, automatic interventions are possible based on received data.

• PD60 RGBW fixtures work through Madrix® software and hardware in coordination. Pixel mapping can be made easily by selecting fixtures in Madrix® library.

• Direct View and Dome options are available. Connectors are located on the rear in the PD60 RGBW version and on the side surfaces in the PD60S RGBW version. Transparent and opaque caps are resistant to UV and impact and never turn yellow during their lifetime due to the alloyed PMMA and PC structure.

• PD60 RGBW Series is in IP67 protection class and it is designed to meet challenging requirements of exterior facade applications with its robust and durable structure. PD60 RGB is resistant to impact, vibration and other harsh conditions due to aluminium housing and special filler material.

• PD60 RGBW fixture provides power and data transmission via input and output connectors. IP67 connectors are in push-lock structures and can be easily dismantled and assembled. There is no need to use extra junction-box via input and output.

• PD60 RGBW Series is produced in RAL9005-black color as standard, and it is also available in different colors in RAL code upon request.

Read More

Ordering Information

P01003105 PD60-RGBW 4Ch. DMX Direct View Pixel Dot

P01004105 PD60S-RGBW 4Ch. DMX Direct View Pixel Dot

P01005105 PD60-RGBW 4Ch. DMX Dome Pixel Dot

P01009105 PD60S-RGBW 4Ch. DMX Dome Pixel Dot

Download Files

Marketing Materials

PD60 RGBW Series High Photos.rar
PD60 Series Brochure.pdf

Technical Documents

PD60 RGBW Series Specification Sheet V2_2.pdf
PD60 Series Installation Guide V2.0.pdf
RDM Addressing.pdf

CAD Files

PD60 RGBW Series Dome Pixel Dot Cad File.dwg
PD60 RGBW Series Direct View Pixel Dot Cad File.dwg
PD60S RGBW Series Direct View Pixel Dot Cad File.dwg
PD60S RGBW Series Dome Pixel Dot Cad File.dwg

Technical Drawing

PD60 RGBW Series Direct View Pixel Dot Technical Drawing.pdf
PD60 RGBW Series Dome Pixel Dot Technical Drawing.pdf
PD60S RGBW Series Direct View Pixel Dot Technical Drawing.pdf
PD60S RGBW Series Dome Pixel Dot Technical Drawing.pdf

Compliances

PD60 RGBW Series Direct View Pixel Dot IES LM_79_08 Photometric Measurement Report.pdf
PD60 RGBW Series Dome Pixel Dot IES LM_79_08 Photometric Measurement Report.pdf
PD60 Series EN 60950-1 Test Report.pdf
PD60 Series CE Attestation of Conformity.pdf
PD60 Series CE Declaration of Conformity.pdf
PD60 Series EN 55024_A1_ 2016, EN 55032_AC_2016 Test Report.pdf
PD60 Series EN 55024_A1_ 2016, EN 55032_AC_2016 Test Report.pdf
PD60 Series EN 60598-1_2014, AMD1_2017, EN 60598-2-3_2002, AMD1_2011 Test Report.pdf
PD60 Series EN 60950-22_2006 AC_ 2008 Test Report.pdf
PD60 Series EN 62262_2002 Test Report.pdf
Photobiological Measurment IEC 62471 Test Report.pdf

Performances

PD60 Series Verification and Reliability Report.pdf

IES / LTD Files

PD60 RGBW Series IES Files.rar
PD60 RGBW Series IES Files.rar

Warranty & Safety Instructions

Warranty.pdf
Safety Instruction in Multi Language.pdf

3D Files

PD60 RGBW Series 3D Files.rar

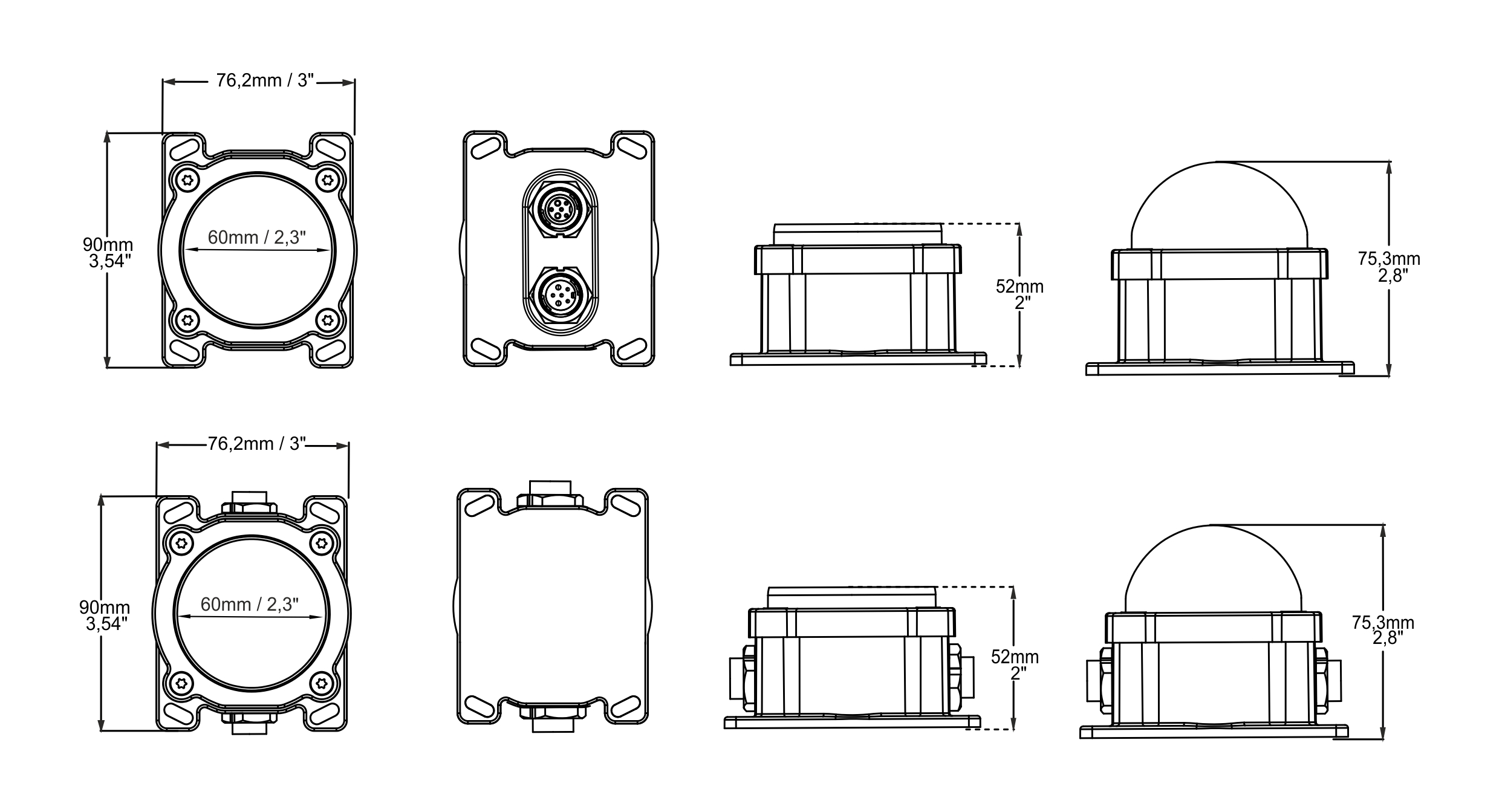

Technical Drawing
