Leoline® S12 RGBA
  • IP67

Leoline® S12RGBW Series is a high-performance and highly durable product range. Despite its high durability, it has a linear, aesthetic and minimal appearance. Leoline® S12RGBW Series is designed specifically for "wall washing" or "wall grazing" applications as a surface-mounted exterior architectural lighting product. Leoline® S12RGBW Series consists of 3 Red, 3 Green, 3 Blue, 3 6500K LEDs at every 315mm (1ft). It is available in 315mm (1ft), 615mm (2ft), 915mm (3ft), 1215mm (4ft), 1515mm (5ft) lengths and it provides excellent color mix with 5 different beam angles. Each 315mm (1ft) section can be individually addressed for more detailed colour changing animations. It is produced from a single piece of extruded aluminium and processed meticulously in CNC machines. Thus, Leoline® S12RGBW Series is produced without the side cover and its durability allows it to work for many years even in the most demanding conditions. Push-lock connectors are used as in/out without any space. Since the connector areas are hidden, no cable is visible when viewed externally in linear use. Leoline® S12RGBW Series provides easy setup and programming with standard DMX512 and RDM protocols without the need for special or complex communication protocols. The Dynamic Power Boost feature allows light to always show maximum brightness and intensify non-white colors. The mounting bracket is at 10° angle and fixed at the adjusted angle due to a locked thread and does not change direction according to the weather conditions. In addition, it provides a linear and spaceless form when mounting to the floor using the U bracket.



• Leoline® S12RGBW Series provides compatible communication with other fixtures using standard DMX512 and RDM protocols without requiring any other special communication protocol or production ID. They are remotely addressable in group via RDM protocol. This feature allows for easy pixel mapping and addressing after all installations have been completed.

• Leoline® S12RGBW fixtures enable flexible application using very long starter and jumper cables, since they operate in a 48V DC voltage range.

• The operating characteristics of the fixtures are able to be changed through the DMX Personality, therefore it is possible to change the number of pixels of the products as well. The number of pixels of the fixtures can be changed to be optimized for appearance and scenario variations. For example, each 315mm (1ft) can be 1 pixel, or a single fixture as 1 pixel.

• Through RDM monitoring and software, it is possible to follow and determine; whether the fixtures are working properly, by displaying voltage input and output warnings, serial number, display of regional temperature values and DMX address. The user is informed by e-mail according to incoming data thus, automatic interventions are possible based on received data.

• The Dynamic Power Boost feature allows light to always show maximum brightness and intensify non-white colors.

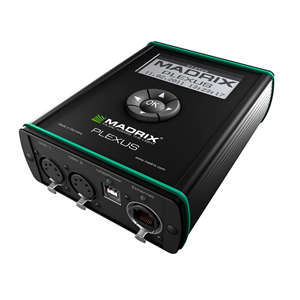

• Leoline® S12RGBW fixtures work through Madrix® software and hardware in coordination. Pixel mapping can be made easily by selecting fixtures in Madrix® library.

• Available in 5 different beam angles: 15° / 30° / 45° / 60° / 35°+15°. Custom product can be produced in different beam angle according to specific projects.

• Each 315mm (1ft) consists of 12 High Power LEDs.

• Due to its special side design, fixtures are mounted side-by-side and no shade is formed between them. Creates a continuous linear view.

• Leoline® S12RGBW is manufactured in 315mm (1ft), 615mm (2ft), 915mm (3ft), 1215mm (4ft), 1515mm (5ft) for different forms of applications in different lengths.

• Leoline® S12RGBW fixture is in IP67 class, and it is designed to meet challenging requirements of exterior facade applications with its robust and durable structure.

• Leoline® S12RGBW is resistant to shock, vibration and other harsh conditions with its aluminum integrated body structure and 6mm thick tempered glass.

• As an optional accessory, Dark Light Louver prevents glare and does not cause dazzling.

• Suitable for using Glare Shield as an option for situations where light sources are not intended to be seen.

• Leoline® S12RGBW provides power and data transmission via input and output connectors. IP67 push-lock connectors are used via “in/out” without space. There is no need to use extra junction-box via input and output.

• Leoline® S12RGBW Series is produced in clear anodized coated color as standard. It can be coated in different anodized color upon request.

Read More

Ordering Information

P02020101 Leoline® S12 315mm DMX RGBW Surface Mounted Narrow Beam 15°

P02020102 Leoline® S12 315mm DMX RGBW Surface Mounted Medium Beam 30°

P02020103 Leoline® S12 315mm DMX RGBW Surface Mounted Wide Beam 45°

P02020104 Leoline® S12 315mm DMX RGBW Surface Mounted Very Wide Beam 60°

P02020106 Leoline® S12 315mm DMX RGBW Surface Mounted Asymmetric Beam 35°+15°

P02021101 Leoline® S12 615mm DMX RGBW Surface Mounted Narrow Beam 15°

P02021102 Leoline® S12 615mm DMX RGBW Surface Mounted Medium Beam 30°

P02021103 Leoline® S12 615mm DMX RGBW Surface Mounted Wide Beam 45°

P02021104 Leoline® S12 615mm DMX RGBW Surface Mounted Very Wide Beam 60°

P02021106 Leoline® S12 615mm DMX RGBW Surface Mounted Asymmetric Beam 35°+15°

P02022101 Leoline® S12 915mm DMX RGBW Surface Mounted Narrow Beam 15°

P02022102 Leoline® S12 915mm DMX RGBW Surface Mounted Medium Beam 30°

P02022103 Leoline® S12 915mm DMX RGBW Surface Mounted Wide Beam 45°

P02022104 Leoline® S12 915mm DMX RGBW Surface Mounted Very Wide Beam 60°

P02022106 Leoline® S12 915mm DMX RGBW Surface Mounted Asymmetric Beam 35°+15°

P02023101 Leoline® S12 1215mm DMX RGBW Surface Mounted Narrow Beam 15°

P02023102 Leoline® S12 1215mm DMX RGBW Surface Mounted Medium Beam 30°

P02023103 Leoline® S12 1215mm DMX RGBW Surface Mounted Wide Beam 45°

P02023104 Leoline® S12 1215mm DMX RGBW Surface Mounted Very Wide Beam 60°

P02023106 Leoline® S12 1215mm DMX RGBW Surface Mounted Asymmetric Beam 35°+15°

P02024101 Leoline® S12 1515mm DMX RGBW Surface Mounted Narrow Beam 15°

P02024102 Leoline® S12 1515mm DMX RGBW Surface Mounted Medium Beam 30°

P02024103 Leoline® S12 1515mm DMX RGBW Surface Mounted Wide Beam 45°

P02024104 Leoline® S12 1515mm DMX RGBW Surface Mounted Very Wide Beam 60°

P02024106 Leoline® S12 1515mm DMX RGBW Surface Mounted Asymmetric Beam 35°+15°
