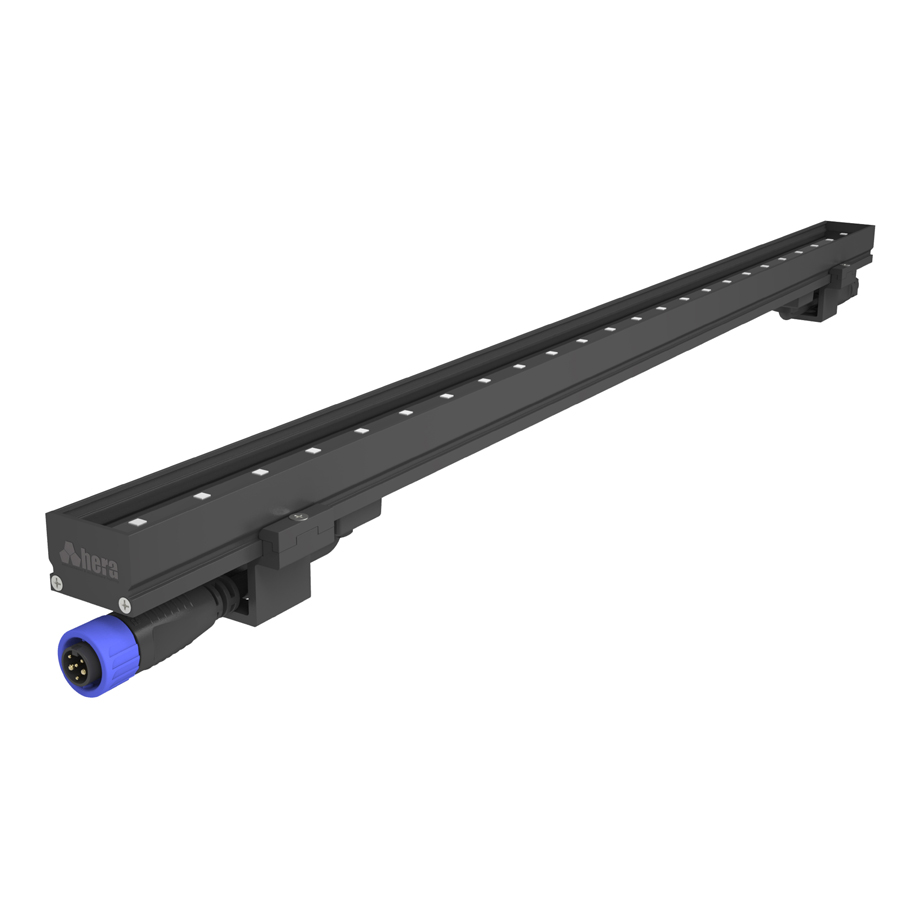

Sword® RGBA Series, provides optimum illumination with excellent colour harmony for media facade lighting, bridges, stadiums, creative stage lighting, and specialized lighting design. With RGB + smart Amber algorithms, the 3-channel system controls 4 colors per pixel. This feature provides Amber color in better quality, thereby improves the display brightness and efficiency. Sword® RGBA fixture provides a dynamic lighting solution with unlimited pixel options, advanced accessory alternatives and easy assembly structures.
• Sword® RGBA can be used in 4 channels through DMX Personality. The 3-channel system can control 4 colors per pixel through RGA + smart amber algorithms. All customization options can be chosen remotely through DMX512 protocol.
• Sword® RGBA provides compatible communication with other fixtures using standard DMX512 and RDM protocols without requiring any other special communication protocol or production ID. They are remotely addressable in group via RDM protocol. This feature allows for easy pixel mapping and addressing after all installations have been completed.
• Sword® RGBA fixtures enable flexible application using very long starter and jumper cables, since they operate in a 48V DC voltage range.
• The operating characteristics of the fixtures are able to be changed with the DMX Personality, therefore it is possible to change the number of pixels of the products as well. The number of pixels of the fixtures can be changed to be optimized for appearance and scenario variations. For example, each LED in the 25mm range can be 1 pixel, or 2 LEDs, 4 LEDs or 8 LEDs as 1 pixel.
• Through RDM monitoring and software, it is possible to follow and determine: whether the fixtures are working properly, by displaying voltage input and output warnings, serial number, display of regional temperature values and DMX address. The user is informed by e-mail according to incoming data thus, automatic interventions are possible based on received data.
• Sword® RGBA fixtures work through Madrix® software and hardware in coordination. Pixel mapping can be made easily by selecting fixtures in Madrix® library.

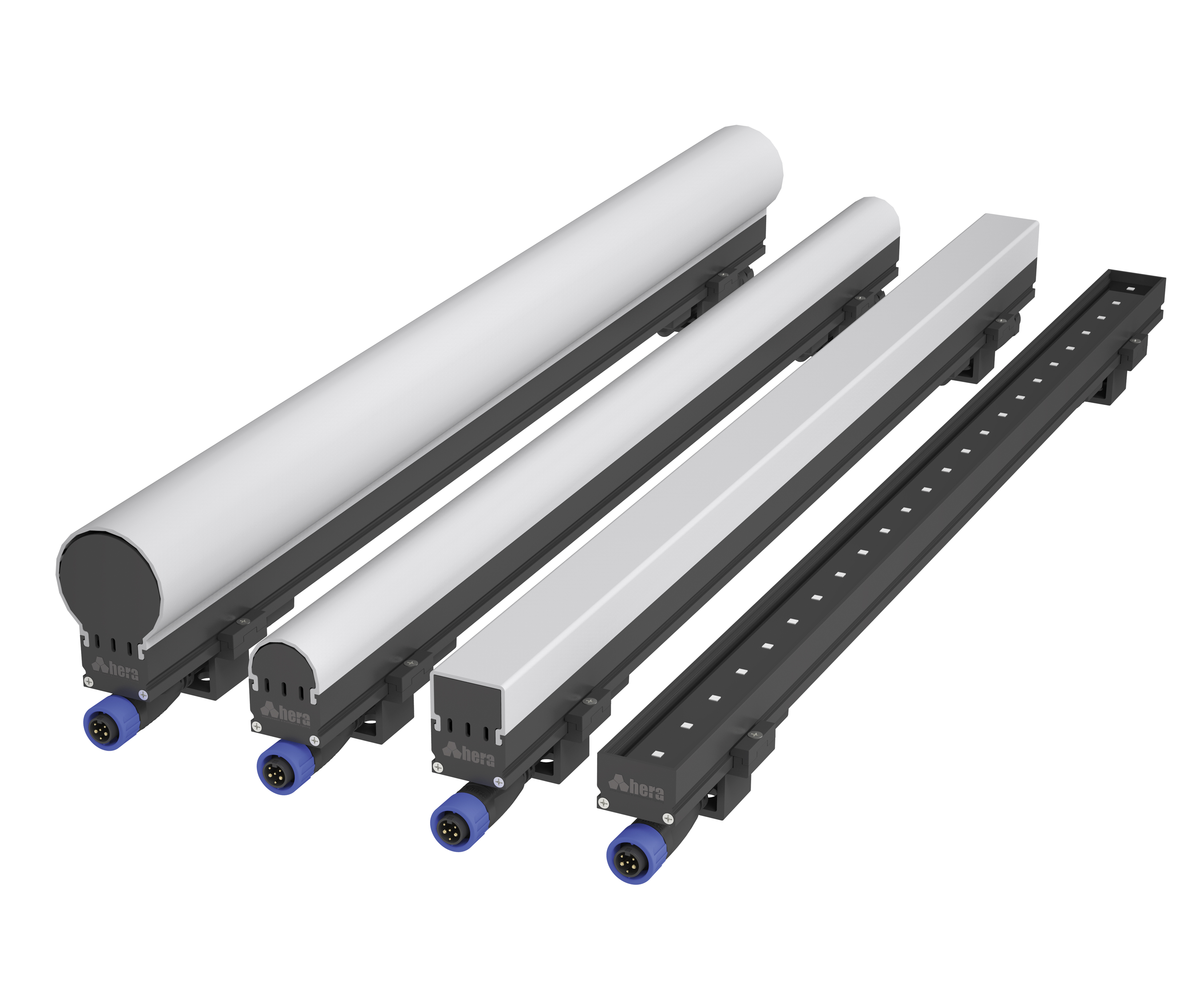

• Direct View, Flat Diffused, Radius Diffused, Round Diffused options are available. Diffuser profiles are resistant to impacts and UV, and never turn yellow during their lifetime due to the alloyed PMMA and PC structure.
• Sword® RGBA creates a continuous linear appearance. Due to the special side-cover design, fixtures are mounted side-by-side and no shadows are formed between them.

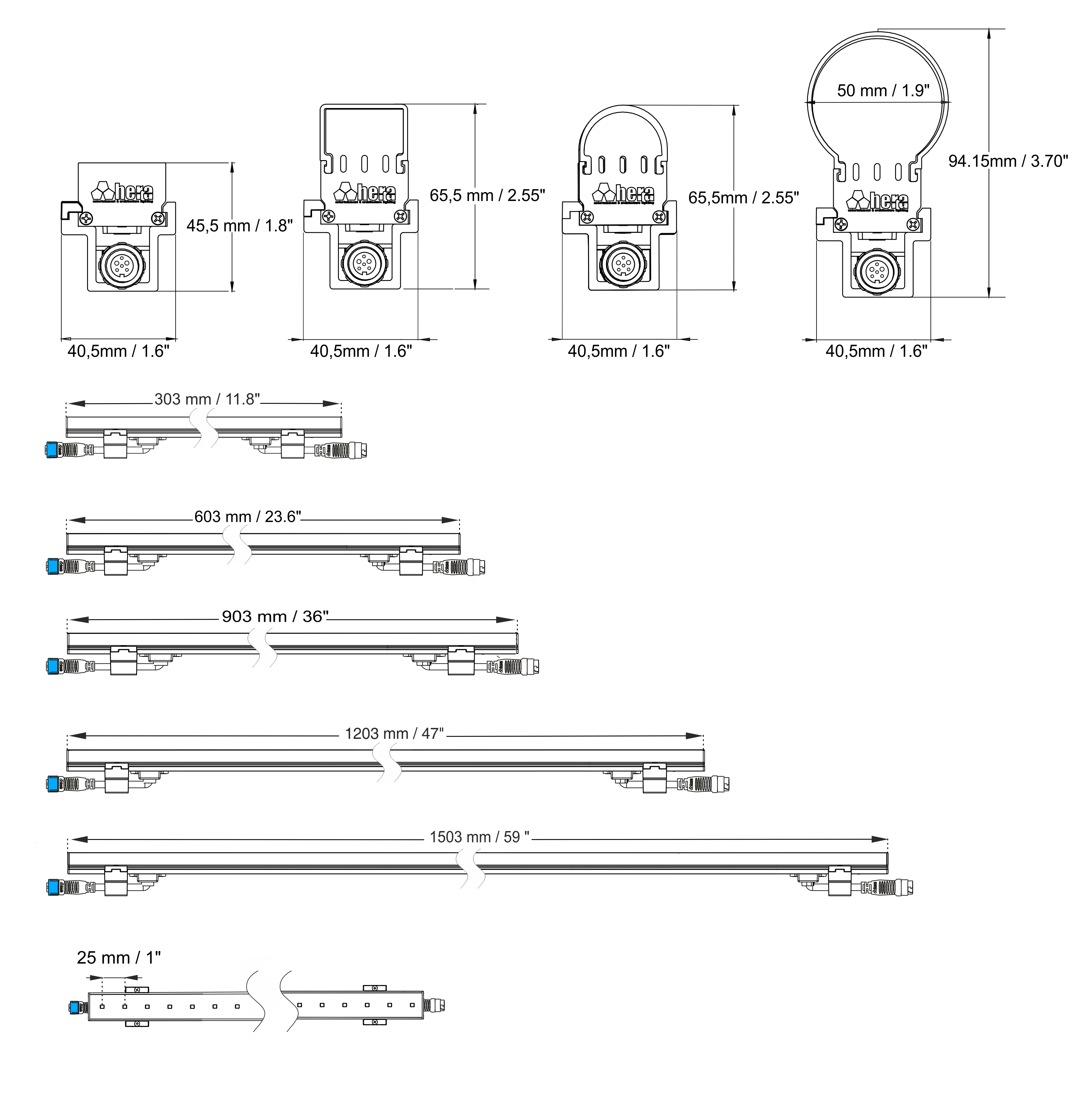

• Available for different forms of applications in different lengths: 300mm, 600mm, 900mm, 1200mm, 1500mm. Sword® RGBA has extra flexible mounting feature for confined spaces, with mounting bracket that can move on the fixture.
• Sword® RGBA fixture is in IP67 protection class and it is designed to meet challenging requirements of exterior facade applications with its robust and durable structure. Sword® RGBA is resistant to impact, vibration and other harsh conditions due to aluminum housing and special filler material.
• Sword® RGBA provides power and data transmission via input and output connectors. IP67 connectors are in push-lock structure. They can be easily rotated and assembled, and leave sufficient gaps between the fixtures. There is no need to use extra junction-box via input and output.
• The slim profile (30mm) ensures to integrate and camouflage the different types of facade coatings easily. It is produced in RAL9005-black color as standard, and it is also available in different colors in RAL code upon request.
